Model

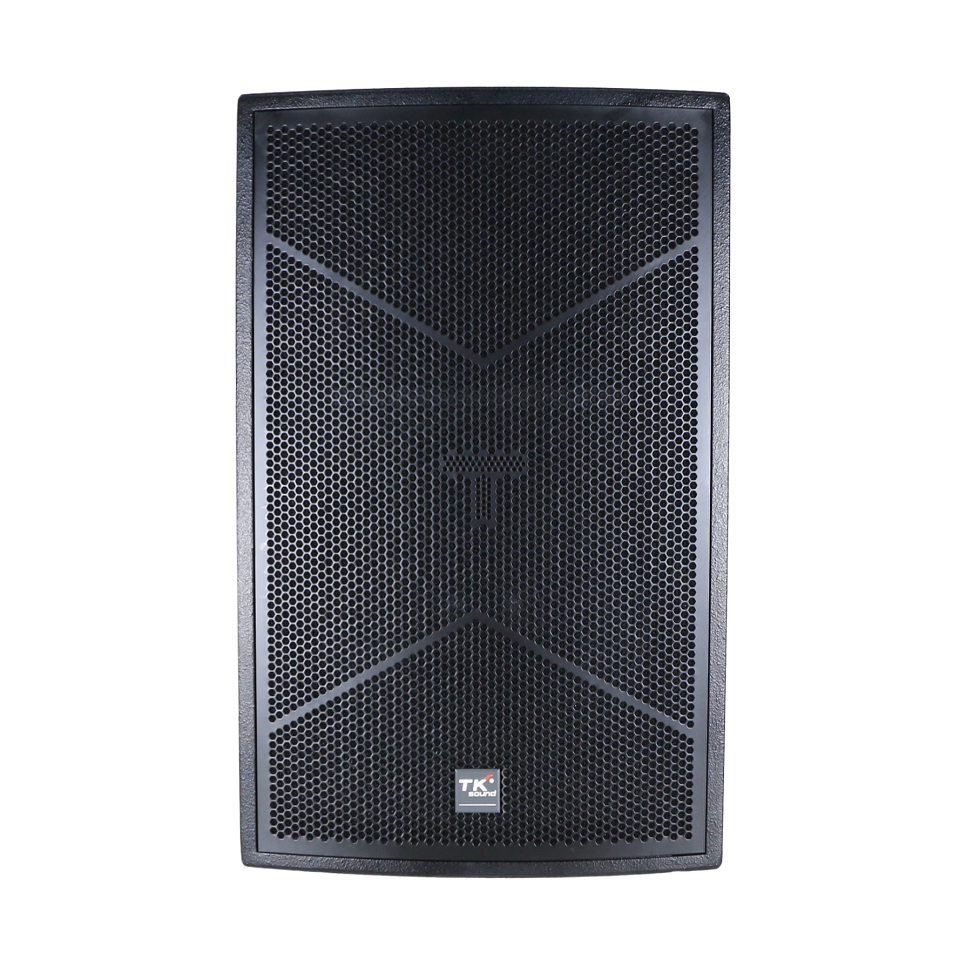

TSF-115

System

2-way Full range

Magenet LF/HF

Ferrite / Ferrite

Frequency response(±3dB)

50Hz-20KHz

LF/HF Drive

LF 15" /HF 44 cores

Nominal Impedance

8ohms

System Sensitivity(1w@1m)

97dB

Maximum SPL

129dB

Power Handling

380W

Instantaneous Power

750W

Nominal Coverage Angle(HxV)

80°x50°

Enclosure Material

Birch Plywood

Net Weight

25.5KG

Housing Size(WxDxH)

440x420x700mm

Shipping Size

520x510x790mm
